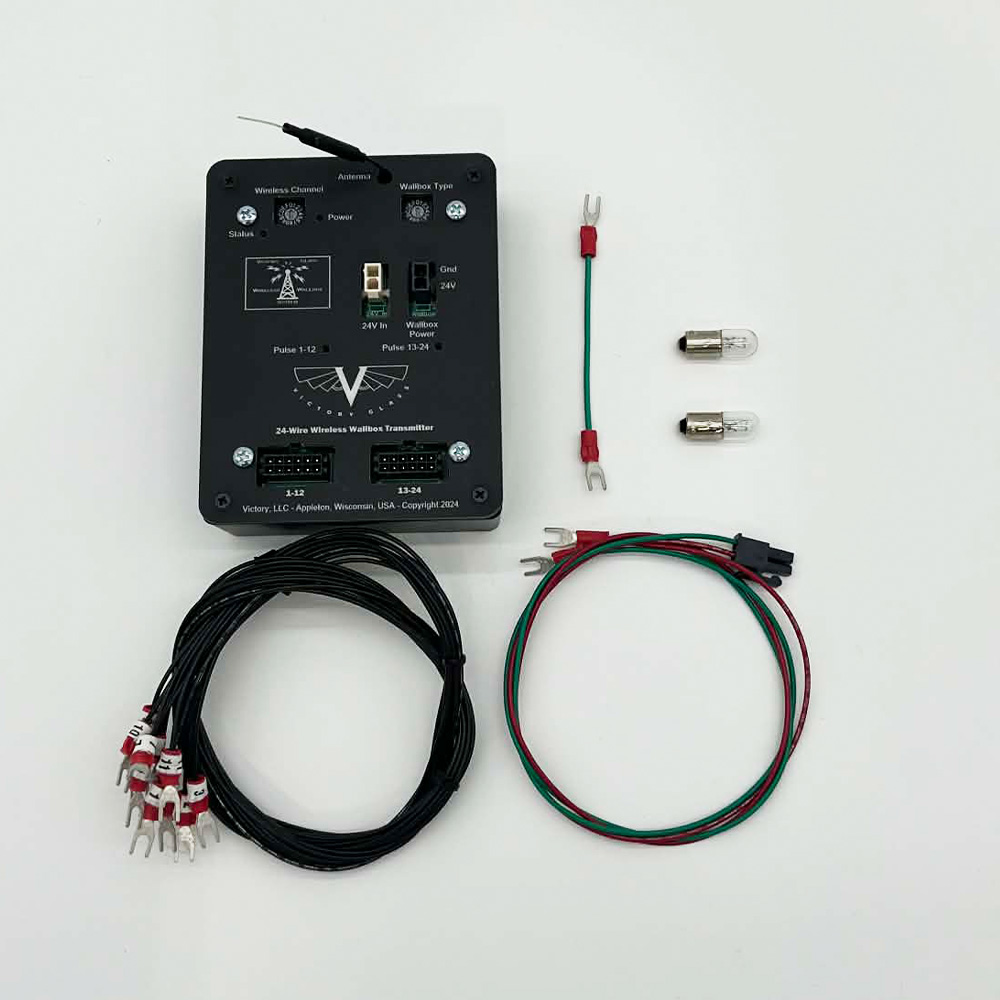

Victory Glass Wireless Wallbox system transmitter for 2140 “frogbox” barbox kit.  This kit allows you to communicate to a jukebox that is equipted with a receiver without the need for the 212.  The kit includes the wireless wallbox 24 wire receiver system, but with only 1-12 wire harness, the 13-24 is not needed.  We also include 2 of the 1820 bulbs needed for the lights to work.  AC power supply is optional below.

The jukebox must have a Victory Glass wireless receiver installed and working in order to receive from this transmitter. (Our Wurlitzer 219E Stepper and Golden Age Solid State Amplifiers have wireless receivers already built into them.)

The Forgbox requires an external 24VAC supply, we offer that as an optional addon.  If you choose to use your own existing, please verify it doesn’t peak higher than 30 VAC with no load.  Too high of a AC voltage can damage the transmitter and would require our external supply.

A single transmitter can support multiple frogboxes.  You will need to tie all selection and AC wires from one wallbox to the other to use multiple together.  Frog and non frog can not be combined.

LIGHTS! This will supply 24VAC to the wallbox, however the frogbox used a separate 6v lighting circuit.  These instructions have you tie the 24VAC to the light wiring BUT you will need to swap out the bulbs with the included 1820 bulbs , spares can be purchased.

We also have an option power switch that can be placed on the AC power cord to allow easy switching on and off of the wallbox and transmitter.

A quick note when first installing.  If your 2140 has not been operating recently the light bulb socket contacts must be insulated, every one we converted had the sockets shorting to the case. DeOx all switch contacts, as multiple contacts need to be made successfully to know what selection is made.

For a detail system information, supported products and the numbering cross reference charts please view the Tech Article.
